Deploy Hybrid Gateways with Tyk Cloud

Introduction

Tyk Cloud hosts and manages the control planes for you. You can deploy the data planes across multiple locations:

• as Cloud Gateways: Deployed and managed in Tyk Cloud, in any of our available regions. These are SaaS gateways, so there are no deployment or operational concerns.
• as Hybrid Gateways: This is a self-managed data plane, deployed in your infrastructure and managed by yourself. Your infrastructure can be a public or private cloud, or even your own data center.

This page describes the deployment of hybrid data planes and how to connect them to Tyk Cloud, in both Kubernetes and Docker environments.

Prerequisites

• Tyk Cloud Account, register here if you don’t have one yet: free trial
• A Redis instance for each data plane, used as ephemeral storage for distributed rate limiting, token storage and analytics. You will find instructions for a simple Redis installation in the steps below.
• No incoming firewall rules are needed, as the connection between Tyk Hybrid Gateways and Tyk Cloud is always initiated from the Gateways, not from Tyk Cloud.

Tyk Hybrid Gateway configuration

The hybrid gateways in the data plane connect to the control plane in Tyk Cloud using the Tyk Dashboard API Access Credentials. Follow the guides below to create the configuration that we will be used in later sections to create a deployment:

Login to your Tyk Cloud account deployments section and click on ADD HYBRID DATA PLANE

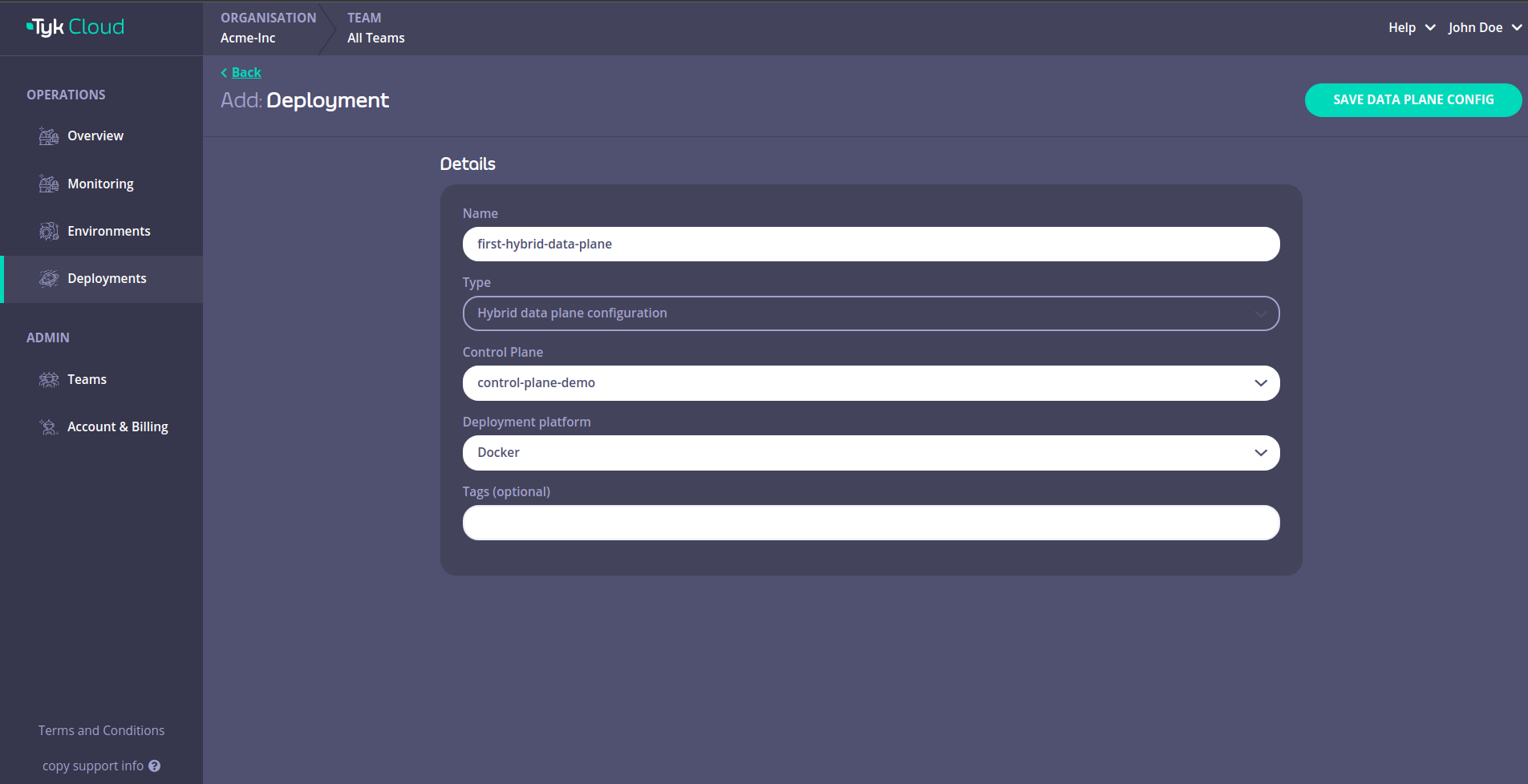

Fill in the details and then click SAVE DATA PLANE CONFIG

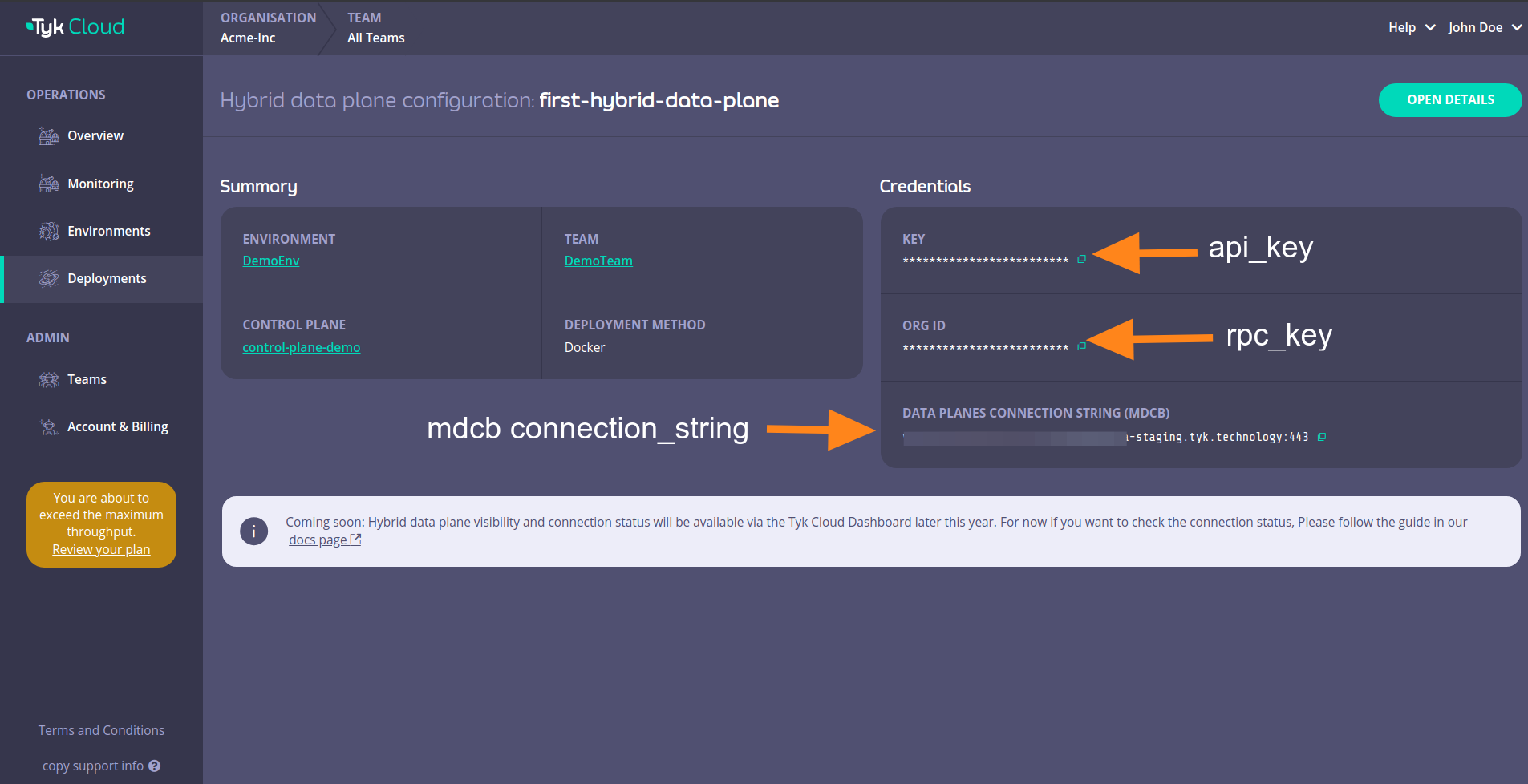

This will open up a page with the data plane configuration details that we need.

Those details are:

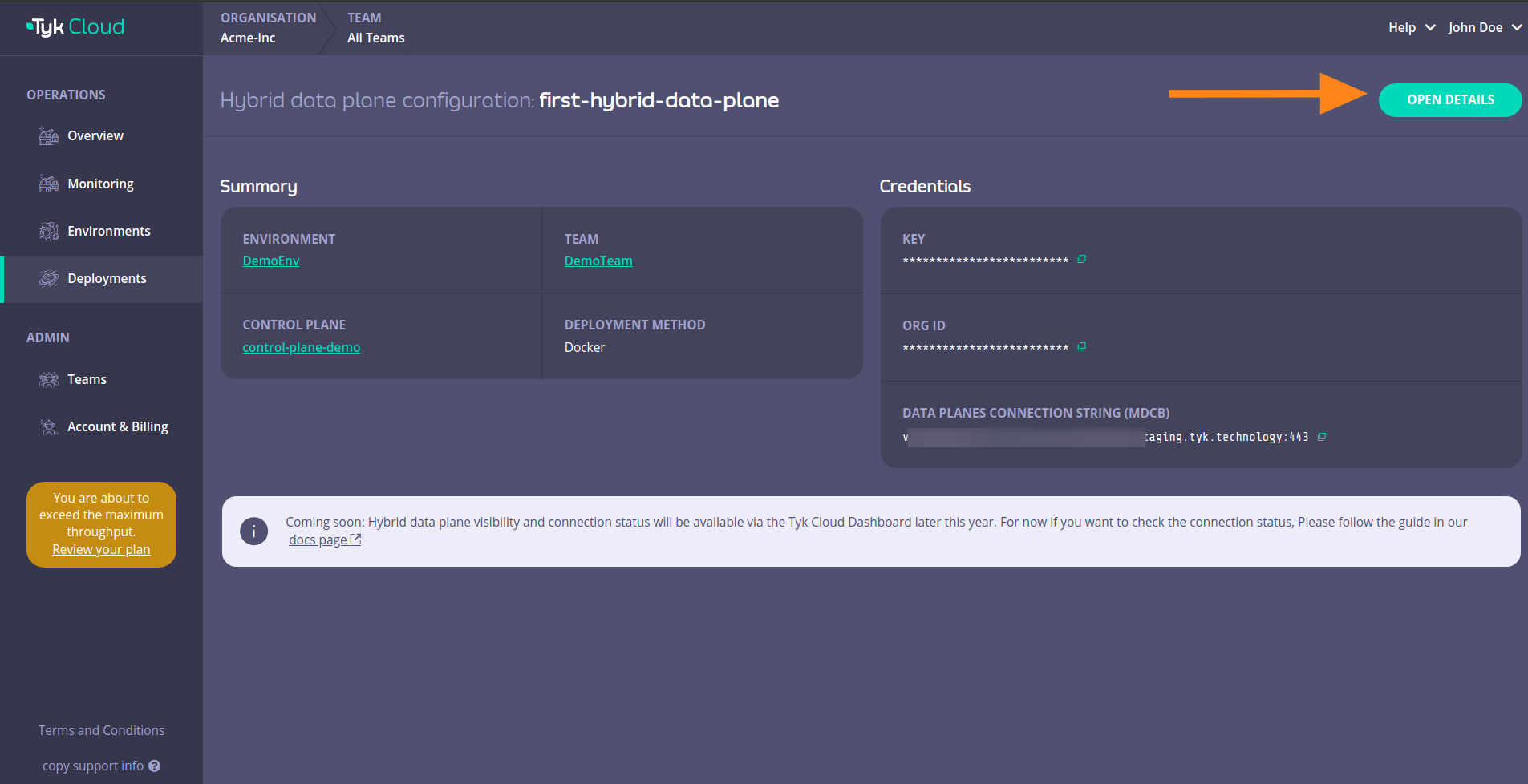

You can also click on OPEN DETAILS

This will reveal instructions that you can use to connect your hybrid data plane to Tyk Cloud.

Deploy with Docker

1. In your terminal, clone the demo application Tyk Gateway Docker repository

git clone https://github.com/TykTechnologies/tyk-gateway-docker.git

2. Configure Tyk Gateway and its connection to Tyk Cloud

You need to modify the following values in tyk.hybrid.conf configuration file:

• rpc_key - Organization ID
• api_key - Tyk Dashboard API Access Credentials of the user created earlier
• connection_string: MDCB connection string
• group_id(optional) - if you have multiple data planes (e.g. in different regions), specify the data plane group (string) to which the gateway you are deploying belongs. The data planes in the same group share one Redis.

{
"rpc_key": "<ORG_ID>",
"api_key": "<API-KEY>",
"connection_string": "<MDCB-INGRESS>:443",
"group_id": "dataplane-europe",
}

• (optional) you can enable sharding to selectively load APIs to specific gateways, using the following:

{
  "db_app_conf_options": {
    "node_is_segmented": true,
    "tags": ["qa", "uat"]
  }
}

3. Configure the connection to Redis

This example comes with a Redis instance pre-configured and deployed with Docker compose. If you want to use another Redis instance, make sure to update the storage section in tyk.hybrid.conf:

{
  "storage": {
        "type": "redis",
        "host": "tyk-redis",
        "port": 6379,
        "username": "",
        "password": "",
        "database": 0,
        "optimisation_max_idle": 2000,
        "optimisation_max_active": 4000
    }
}

4. Update docker compose file

Edit the <docker-compose.yml> file to use the tyk.hybrid.conf that you have just configured.

From:

- ./tyk.standalone.conf:/opt/tyk-gateway/tyk.conf

To:

- ./tyk.hybrid.conf:/opt/tyk-gateway/tyk.conf

5. Run docker compose

Run the following:

docker compose up -d

You should now have two running containers, a Gateway and a Redis.

6. Check that the gateway is up and running

Call the /hello endpoint using curl from your terminal (or any other HTTP client):

curl http://localhost:8080/hello -i

Expected result:

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 17 Mar 2023 12:41:11 GMT
Content-Length: 59

{"status":"pass","version":"4.3.3","description":"Tyk GW"}

Deploy in Kubernetes with Helm Chart

Prerequisites

• Kubernetes 1.19+
• Helm 3+
• Connection details to remote control plane from the above section.

The following quick start guide explains how to use the Tyk Data Plane Helm chart to configure Tyk Gateway that includes:

• Redis for key storage
• Tyk Pump to send analytics to Tyk Cloud and Prometheus

At the end of this quickstart Tyk Gateway should be accessible through service gateway-svc-hybrid-dp-tyk-gateway at port 8080. Pump is also configured with Hybrid Pump which sends aggregated analytics to Tyk Cloud, and Prometheus Pump which expose metrics locally at :9090/metrics.

1. Set connection details

Set the below environment variables and replace values with connection details to your Tyk Cloud remote control plane. See the above section on how to get the connection details.

MDCB_UserKey=9d20907430e440655f15b851e4112345
MDCB_OrgId=64cadf60173be90001712345
MDCB_ConnString=mere-xxxxxxx-hyb.aws-euw2.cloud-ara.tyk.io:443
MDCB_GroupId=your-group-id

2. Then use Helm to install Redis and Tyk

NAMESPACE=tyk
APISecret=foo
REDIS_BITNAMI_CHART_VERSION=19.0.2

helm repo add tyk-helm https://helm.tyk.io/public/helm/charts/
helm repo update

helm upgrade tyk-redis oci://registry-1.docker.io/bitnamicharts/redis -n $NAMESPACE --create-namespace --install --version $REDIS_BITNAMI_CHART_VERSION

helm upgrade hybrid-dp tyk-helm/tyk-data-plane -n $NAMESPACE --create-namespace \
  --install \
  --set global.remoteControlPlane.userApiKey=$MDCB_UserKey \
  --set global.remoteControlPlane.orgId=$MDCB_OrgId \
  --set global.remoteControlPlane.connectionString=$MDCB_ConnString \
  --set global.remoteControlPlane.groupID=$MDCB_GroupId \
  --set global.secrets.APISecret="$APISecret" \
  --set global.redis.addrs="{tyk-redis-master.$NAMESPACE.svc.cluster.local:6379}" \
  --set global.redis.passSecret.name=tyk-redis \
  --set global.redis.passSecret.keyName=redis-password

3. Done!

Now Tyk Gateway should be accessible through service gateway-svc-hybrid-dp-tyk-gateway at port 8080. Pump is also configured with Hybrid Pump which sends aggregated analytics to Tyk Cloud, and Prometheus Pump which expose metrics locally at :9090/metrics.

For the complete installation guide and configuration options, please see Tyk Data Plane Chart.

Remove hybrid data plane configuration

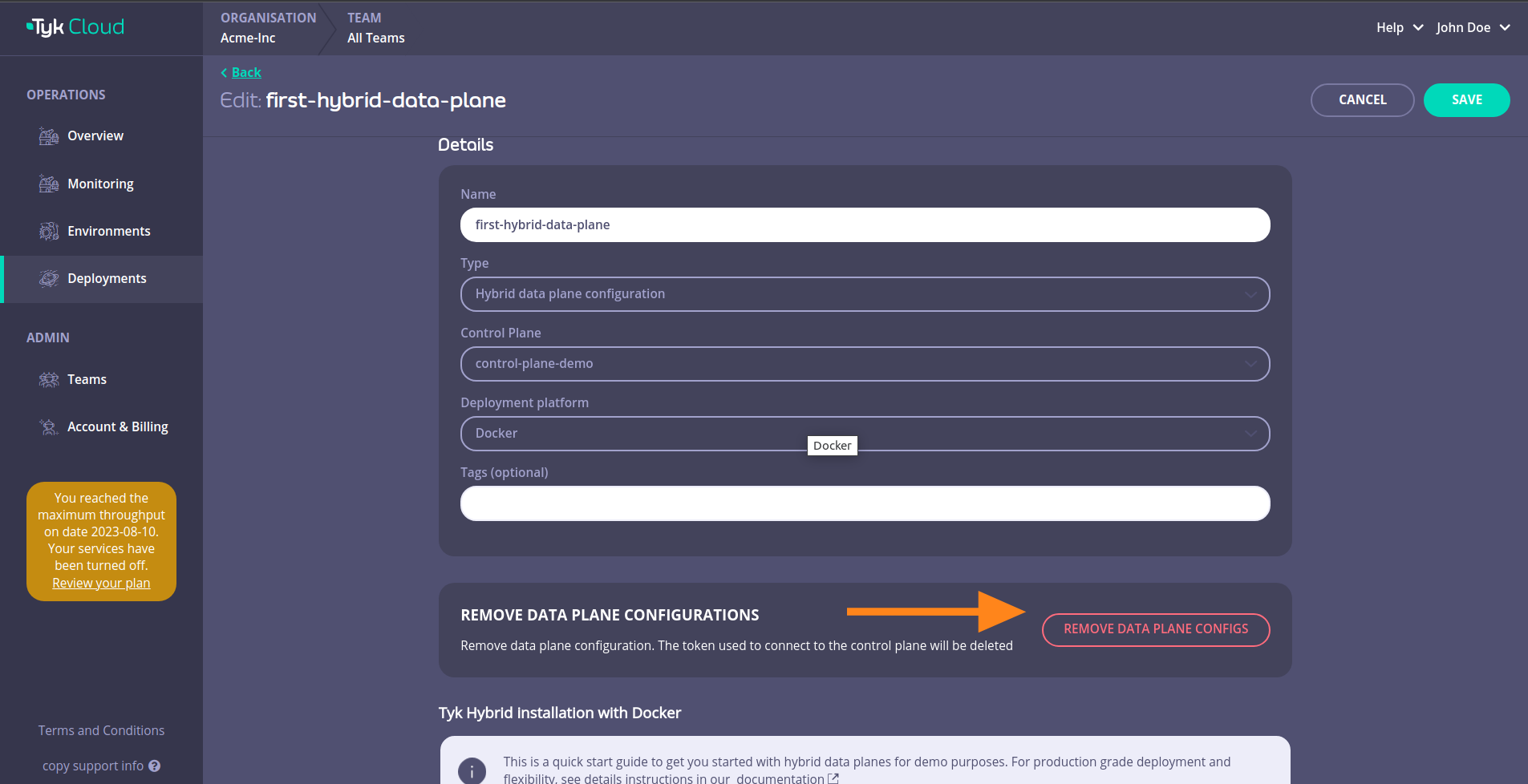

Then click on REMOVE DATA PLANE CONFIGS

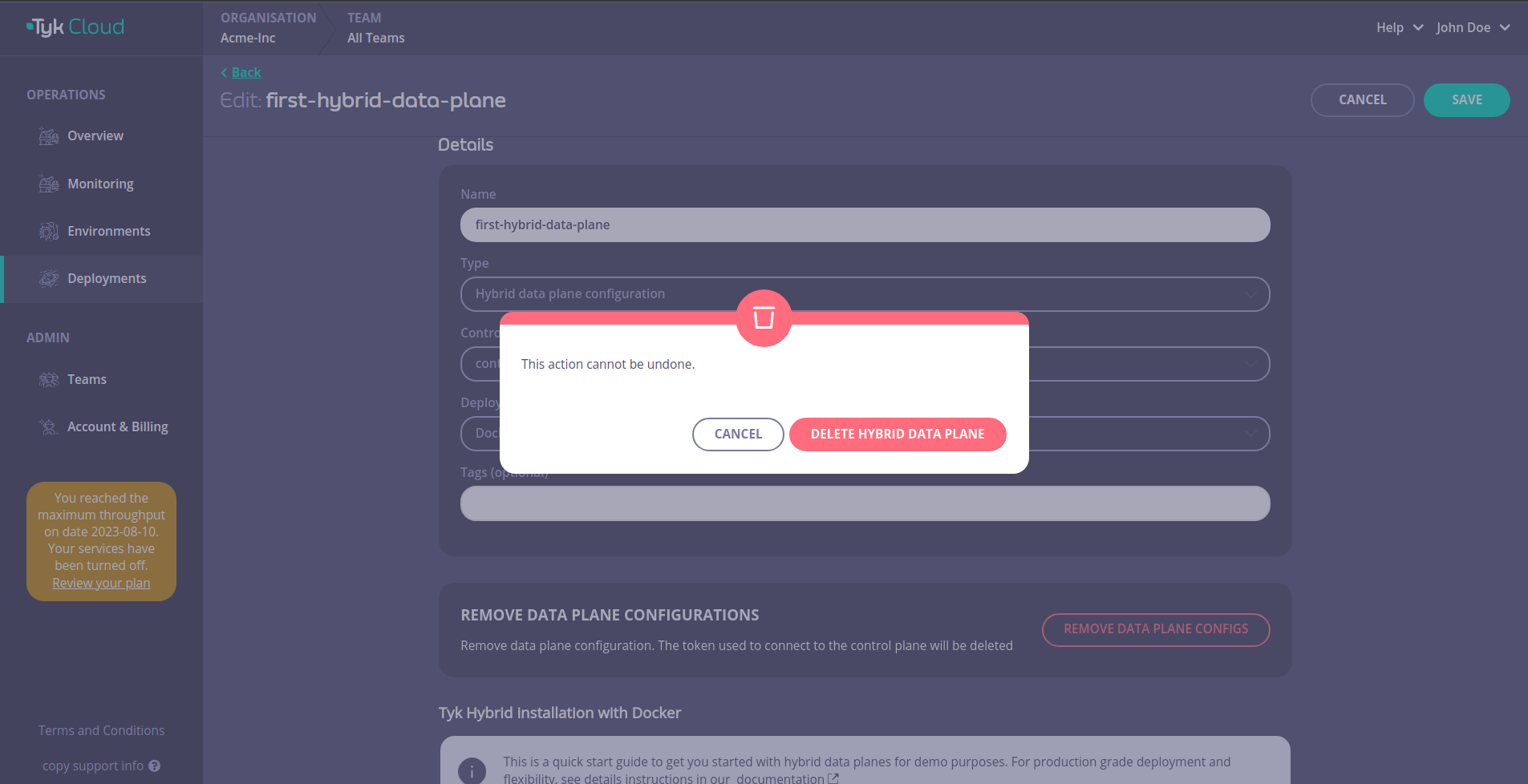

Confirm the removal by clicking DELETE HYBRID DATA PLANE

Tyk Cloud MDCB Supported versions

This section lists the supported MDCB version for hybrid setup

Deploy Legacy Hybrid Gateways

1. Add the Tyk official Helm repo tyk-helm to your local Helm repository

helm repo add tyk-helm https://helm.tyk.io/public/helm/charts/
helm repo update

The helm charts are also available on ArtifactHub.

2. Then create a new namespace that will be hosting the Tyk Gateways

kubectl create namespace tyk

3. Get the default values.yaml for configuration

Before proceeding with installation of the chart we need to set some custom values. First save the full original values.yaml to a local copy:

helm show values tyk-helm/tyk-hybrid > values.yaml

4. Configure Tyk Gateway and its connection to Tyk Cloud

You need to modify the following values in your custom values.yaml file:

• gateway.rpc.apiKey - Tyk Dashboard API Access Credentials of the user created earlier
• gateway.rpc.rpcKey - Organization ID
• gateway.rpc.connString - MDCB connection string
• gateway.rpc.group_id(optional) - if you have multiple data plane (e.g. in different regions), specify the data plane group (string) to which the gateway you are deploying belong. The data planes in the same group share one Redis instance.
• gateway.sharding.enabled and gateway.sharding.tags(optional) - you can enable sharding to selectively load APIs to specific gateways, using tags. By default, sharding is disabled and the gateway will load all APIs.

5. Configure the connection to Redis

You can connect the gateway to any Redis instance already deployed (as DBaaS or hosted in your private infrastructure).

In case you don’t have a Redis instance yet, here’s how to deploy Redis in Kubernetes using Bitnami Helm charts.

helm install tyk-redis bitnami/redis -n tyk --version 19.0.2

Follow the notes from the installation output to get connection details and password.

  Redis(TM) can be accessed on the following DNS names from within your cluster:

    tyk-redis-master.tyk.svc.cluster.local for read/write operations (port 6379)
    tyk-redis-replicas.tyk.svc.cluster.local for read-only operations (port 6379)

  export REDIS_PASSWORD=$(kubectl get secret --namespace tyk tyk-redis -o jsonpath="{.data.redis-password}" | base64 --decode)

You need to modify the following values in your custom values.yaml file:

• redis.addrs: the name of the Redis instance including the port as set by Bitnami tyk-redis-master.tyk.svc.cluster.local:6379
• redis.pass: password set in redis ($REDIS_PASSWORD). Alternatively, you can use –set flag to set it during helm installation. For example --set redis.pass=$REDIS_PASSWORD.

6. Install Hybrid data plane

Install the chart using the configured custom values file:

helm install tyk-hybrid tyk-helm/tyk-hybrid -f values.yaml -n tyk

You should see the prompt:

At this point, Tyk Hybrid is fully installed and should be accessible.

7. Check that the installation was successful

The hybrid data planes are not yet visible in Tyk Cloud (coming soon!). Here is how you can check that the deployment was successful.

Run this command in your terminal to check that all pods in the tyk namespace are running:

kubectl get pods -n tyk

Expected result:

NAME                                  READY   STATUS    RESTARTS   AGE
gateway-tyk-hybrid-54b6c498f6-2xjvx   1/1     Running   0          4m27s
tyk-redis-master-0                    1/1     Running   0          47m
tyk-redis-replicas-0                  1/1     Running   0          47m
tyk-redis-replicas-1                  1/1     Running   0          46m
tyk-redis-replicas-2                  1/1     Running   0          46m

Note: if you are using a Redis instance hosted somewhere else, then no Redis pods will appear here.

Run this command in your terminal to check that the services were correctly created:

kubectl get service -n tyk

Expected result:

NAME                     TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)         AGE
gateway-svc-tyk-hybrid   NodePort    10.96.232.123    <none>        443:32668/TCP   44m
tyk-redis-headless       ClusterIP   None             <none>        6379/TCP        47m
tyk-redis-master         ClusterIP   10.109.203.244   <none>        6379/TCP        47m
tyk-redis-replicas       ClusterIP   10.98.206.202    <none>        6379/TCP        47m

Note: IP adresses might differ on your system.

Finally, from your terminal, send an HTTP call to the /hello endpoint of the gateway gateway-svc-tyk-hybrid:

Note: you may need to port forward if you’re testing on a local machine, e.g. kubectl port-forward service/gateway-svc-tyk-hybrid -n tyk 8080:443

curl http://hostname:8080/hello -i

Expected result:

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 17 Mar 2023 10:35:35 GMT
Content-Length: 234

{
  "status":"pass",
  "version":"4.3.3",
  "description":"Tyk GW",
  "details":{
    "redis": {"status":"pass","componentType":"datastore","time":"2023-03-15T11:39:10Z"},
    "rpc": {"status":"pass","componentType":"system","time":"2023-03-15T11:39:10Z"}}
}
